What aisle width does our forklift need?

Aisle width is set by the lift truck and its load. Counterbalance trucks commonly need about 12–13 feet, reach trucks 8–10 feet, and very-narrow-aisle equipment 5–6 feet. We confirm the truck manufacturer’s requirement for your pallets; aisle width strongly affects storage density.

How is a pushback rack project priced?

Pallet positions, height, beam capacity, decking, freight and installation all affect the quote. Share pallet size, maximum load per level, usable height and building size; we will draw a free CAD layout and list the project costs by item.

How long does delivery and installation take?

Standard teardrop sizes often quick-ship; high-density systems and non-standard sizes take longer. Lead time is confirmed on your quote. Installation duration depends on bay count, site readiness and the work sequence around your receiving and shipping.

Which rack system should we choose?

For many different SKUs, selective teardrop rack gives direct pallet access. Pushback provides two-to-six-deep last-in, first-out lanes by SKU, pallet flow rotates dated stock first-in, first-out, and drive-in stores bulk quantities of a few items. Long material needs cantilever; case picking calls for carton flow.

What determines the price of cantilever rack?

The cost follows your load position count, rack height, arm rating, load supports choice, freight and installation scope. We need pallet dimensions, the heaviest load on each level, clear height and building dimensions to prepare a free CAD layout with itemized pricing.

Industrial pallet racks and warehouse racking systems

Pallet Rack Systems for Greater Cincinnati Warehouses

Name: Cincinnati Pallet Racks
Address: 2345 Ashland Ave., Cincinnati, OH, 45206, US
Telephone: (513) 957-3017
Price range: $$

From the 32 to 40 ft clear bulk buildings in West Chester, Hebron and the Dayton airport parks to 18 to 26 ft plants in Queensgate, Norwood and Hamilton, every building here needs a different rack plan. We design, supply and install pallet rack, pushback, pallet flow, drive-in, cantilever and carton flow across Southwest Ohio and Northern Kentucky.

Pick the system that matches how your product moves, or call (513) 957-3017 and we will narrow it down with you in one conversation.

(513) 957-3017

Our Warehouse Racking Products

Six systems cover almost every storage problem we see in Southwest Ohio and Northern Kentucky. Most buildings end up using two of them together.

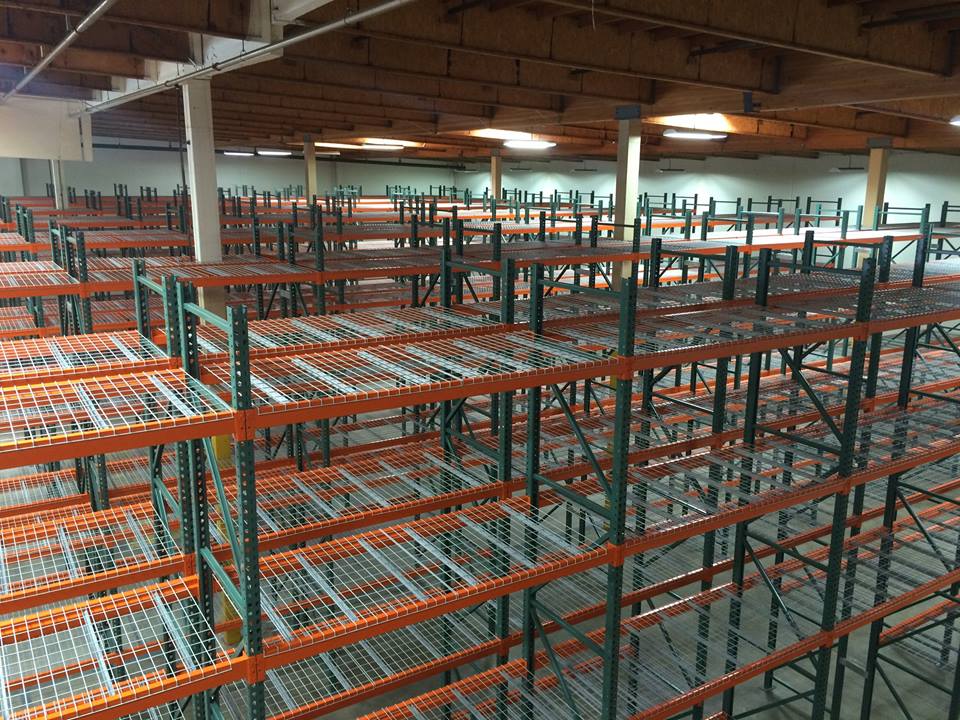

Pallet Rack

Also called selective pallet rack

Every pallet reachable, every time. The baseline we size everything else against.

See details

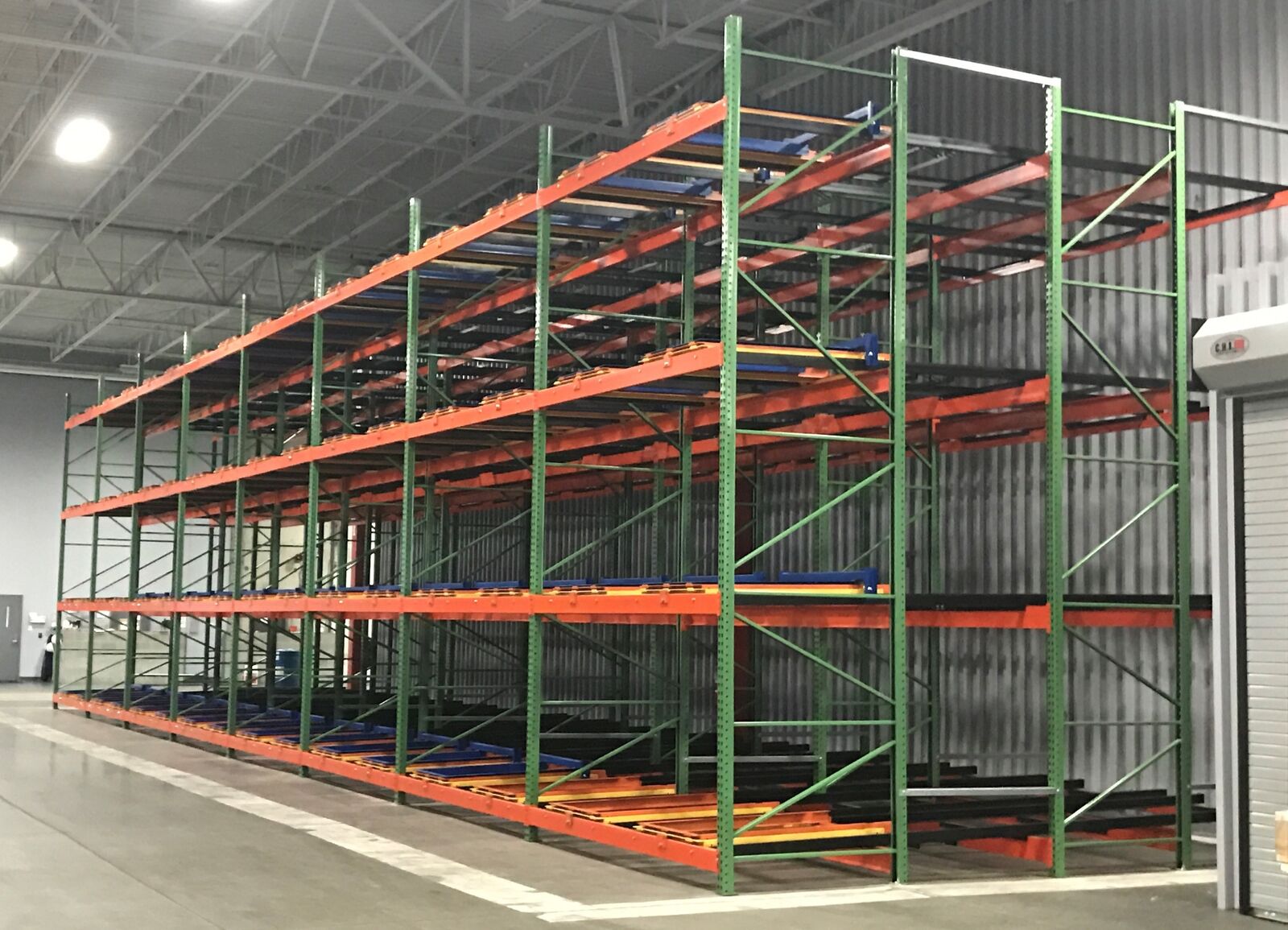

Pushback Rack

Also called push back pallet rack system

Two to six pallets deep from one aisle, without giving up much reach.

See details

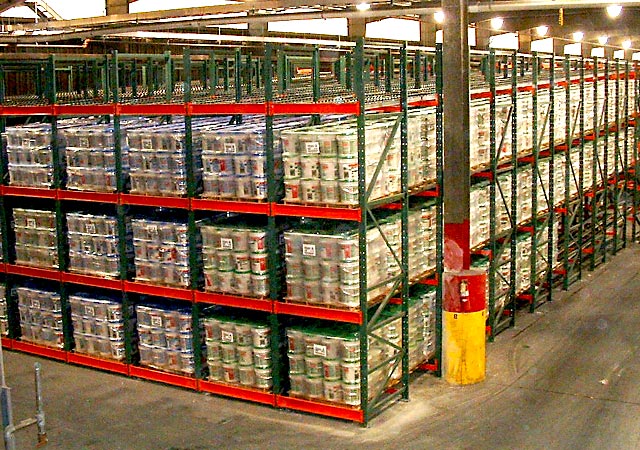

Pallet Flow Rack

Also called flow through racking

Load one side, pick the other, and let gravity enforce first in, first out.

See details

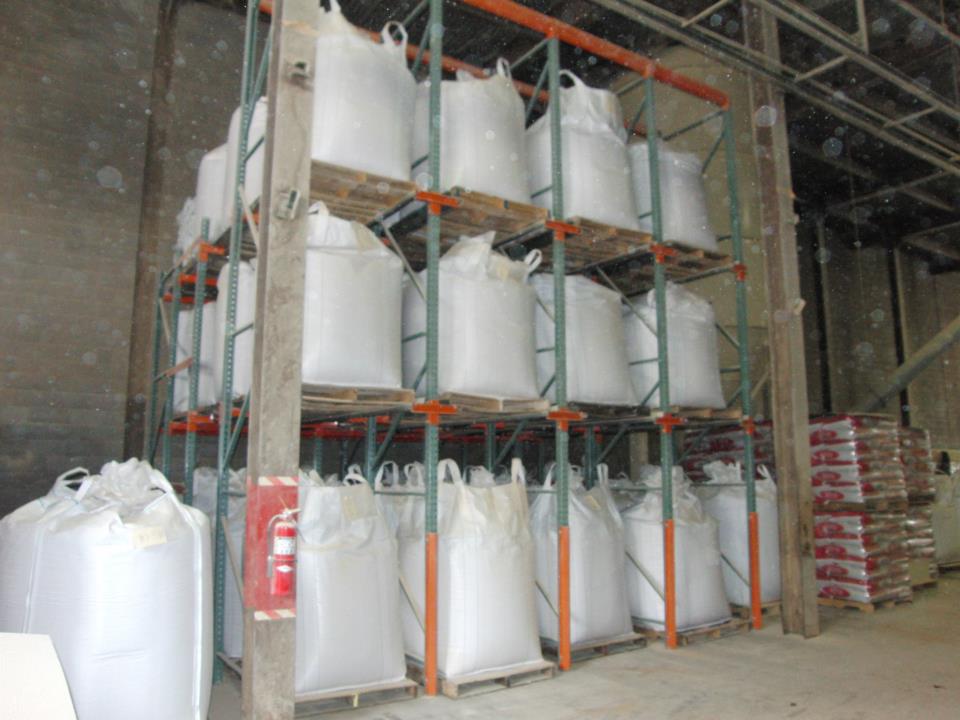

Drive-In Rack

Also called drive through pallet racking

No aisles. The forklift enters the structure, and the floor holds more pallets per square foot than any other system.

See details

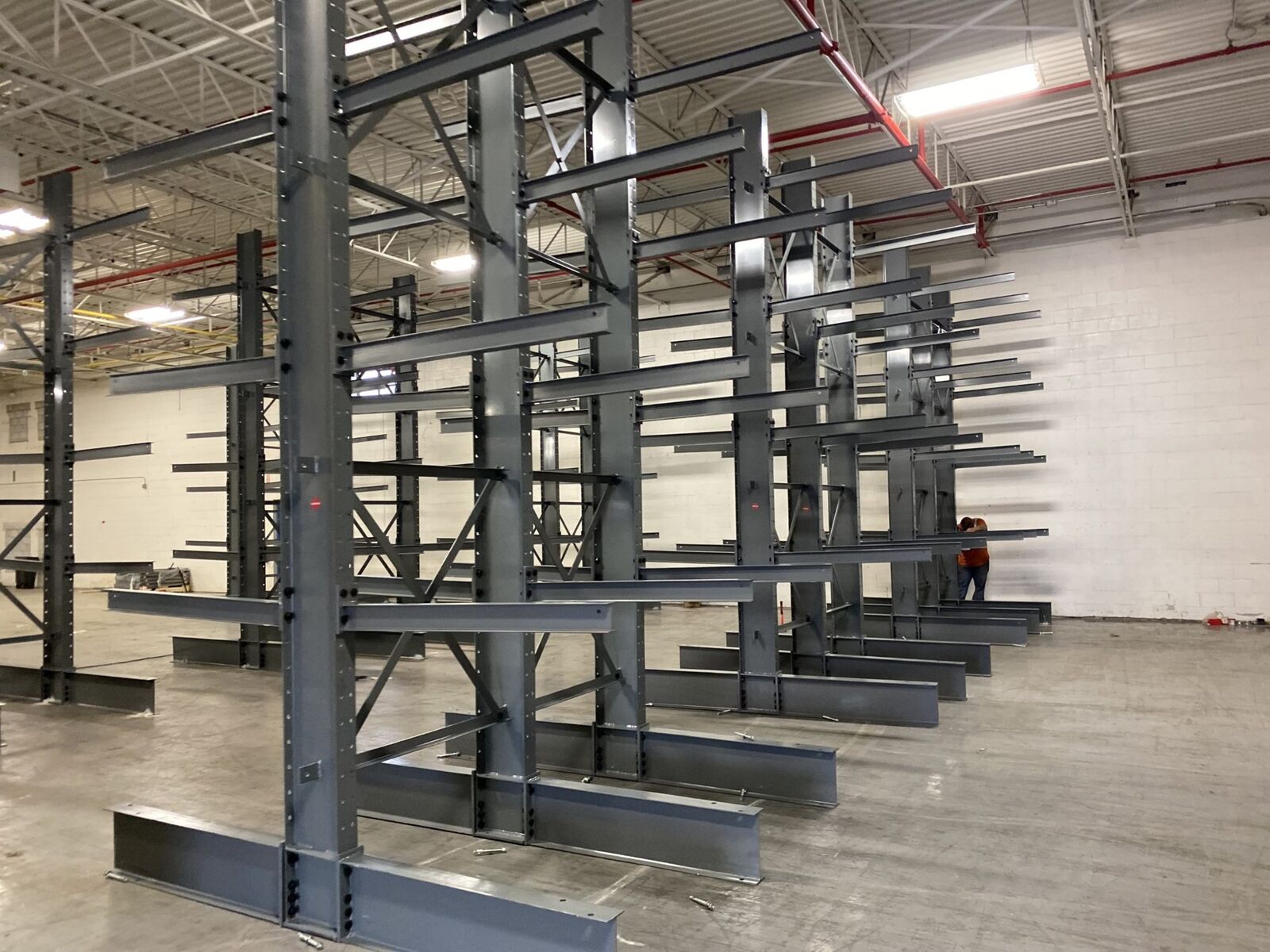

Cantilever Rack

Also called cantilever warehouse racking

Arms with nothing in front of them, built for lumber, pipe, and anything a pallet can't hold.

See details

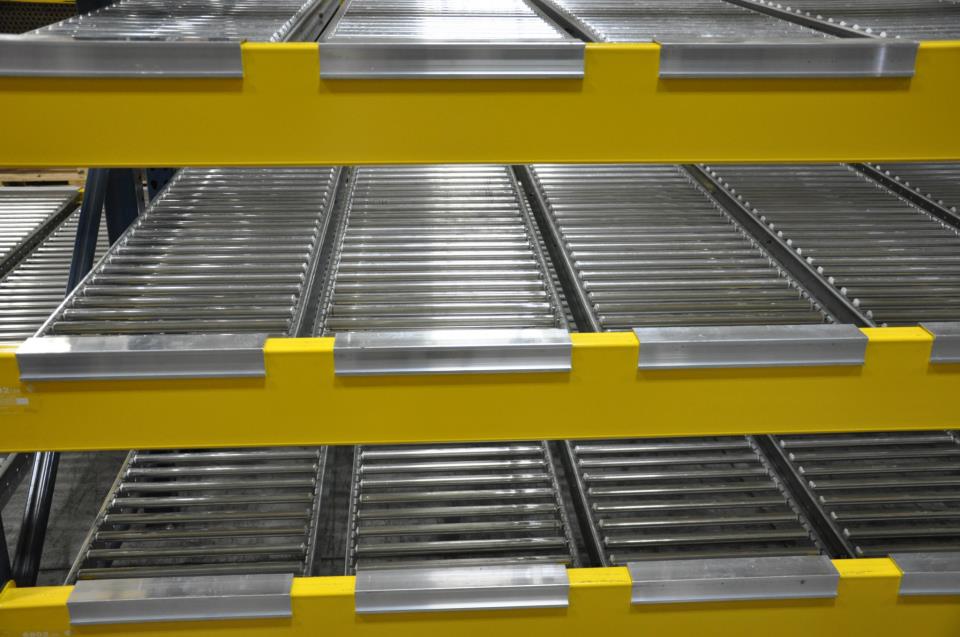

Carton Flow Rack

Also called carton flow shelving

Cases advance to the picker instead of the picker hunting for cases.

See details

Choosing Between Rack Types

Four things decide the answer: how many SKUs you carry, how many pallets you hold of each one, how fast product turns, and how much height the building gives you.

Many SKUs with a pallet or two each point to selective pallet rack. Several pallets of the same item favor pushback. Date-driven rotation calls for pallet flow. Large volumes of a few items in a tight footprint suit drive-in. Long material needs cantilever, and case picking needs carton flow.

Free warehouse consultation

CAD layout with pallet position counts

Experienced installation crews we schedule and manage

One local contact from layout to punch list
